What are the types of hydraulic motors?

Hydraulic motors are essential components in various industrial and mobile applications, converting hydraulic energy into mechanical energy. As a reliable hydraulic motor supplier, I am well - versed in the different types of hydraulic motors available in the market. In this blog, I will explore the main types of hydraulic motors, their characteristics, and applications.

Gear Motors

Gear motors are one of the most common types of hydraulic motors. They are relatively simple in design, consisting of two meshing gears - a driving gear and a driven gear. These gears are enclosed in a housing, and when pressurized hydraulic fluid enters the motor, it causes the gears to rotate.

Characteristics

• Simplicity: Gear motors have a straightforward design with few moving parts, which makes them easy to manufacture and maintain.
• Compactness: They are relatively small in size, making them suitable for applications where space is limited.
• Cost - effectiveness: Due to their simple design and ease of production, gear motors are generally more affordable than other types of hydraulic motors.

Applications

Gear motors are commonly used in low - to medium - pressure applications, such as conveyor systems, agricultural machinery, and small industrial equipment. For example, in a conveyor system, a gear motor can be used to drive the conveyor belt, providing a reliable and cost - effective solution.

Vane Motors

Vane motors operate based on the principle of vanes sliding in and out of slots in a rotor. When hydraulic fluid is introduced into the motor, it pushes the vanes outwards, causing the rotor to rotate.

Characteristics

• Smooth operation: Vane motors provide smooth and quiet operation, which is beneficial in applications where noise reduction is important.
• Good efficiency at medium speeds: They offer relatively high efficiency in the medium - speed range, making them suitable for a wide variety of applications.
• Moderate pressure capabilities: Vane motors can handle moderate hydraulic pressures, typically up to around 2000 - 3000 psi.

Applications

Vane motors are often used in machine tools, automotive power steering systems, and some types of industrial pumps. In a machine tool, a vane motor can be used to drive the spindle, providing precise and smooth rotation.

Piston Motors

Piston motors are more complex in design compared to gear and vane motors. They can be further classified into axial piston motors and radial piston motors.

Axial Piston Motors

Axial piston motors have pistons arranged parallel to the axis of the motor's rotation. There are two main types of axial piston motors: bent - axis and swash - plate.

• Bent - axis Axial Piston Motors: In a bent - axis axial piston motor, the axis of the pistons is at an angle to the axis of the motor shaft. This design allows for high - torque output and high - speed operation.
• Swash - plate Axial Piston Motors: Swash - plate axial piston motors use a swash plate to control the stroke of the pistons. They are known for their high efficiency, variable displacement capabilities, and compact design.

Radial Piston Motors

Radial piston motors have pistons arranged radially around the motor shaft. These motors are capable of generating high torque at low speeds, making them suitable for heavy - duty applications.

Characteristics of Piston Motors

• High efficiency: Piston motors generally offer high efficiency, especially in high - pressure and high - speed applications.
• High torque capabilities: They can generate high torque, making them suitable for applications that require heavy - lifting or high - force operations.
• Variable displacement: Many piston motors have variable displacement capabilities, which means the output speed and torque can be adjusted according to the application requirements.

Applications

Piston motors are widely used in construction equipment, such as excavators and bulldozers, as well as in industrial presses, marine applications, and high - performance mobile machinery. For instance, in an excavator, an axial piston motor can be used to drive the tracks, providing the necessary power for movement.

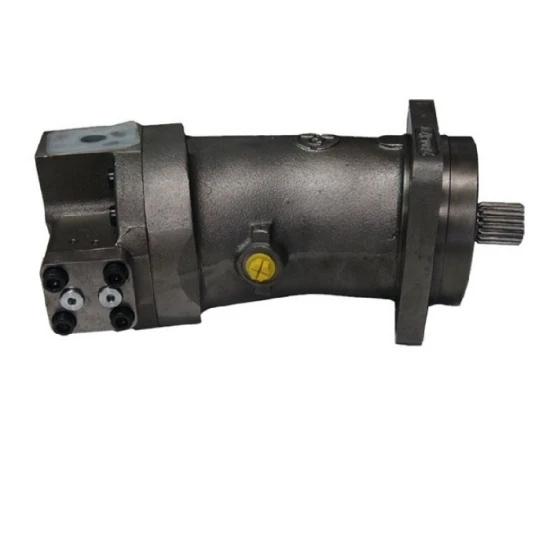

If you are interested in a specific type of piston motor, we offer the Huade Axial Piston Motor A6V28 A6V55 Variable Hydraulic Motor, which is known for its high performance and reliability.

Orbital Motors

Orbital motors, also known as gerotor or geroller motors, are a type of low - speed, high - torque hydraulic motor. They are based on the principle of an inner gear (gerotor or geroller) rotating inside an outer gear.

Characteristics

• High torque at low speeds: Orbital motors can generate high torque even at very low speeds, which is ideal for applications that require slow and powerful movement.
• Compact design: They are relatively small in size, making them suitable for applications where space is limited.
• Simple construction: Orbital motors have a simple design with few moving parts, which contributes to their reliability and ease of maintenance.

Applications

Orbital motors are commonly used in skid - steer loaders, lawn mowers, and other types of small to medium - sized mobile equipment. For example, in a skid - steer loader, an orbital motor can be used to drive the wheels, providing the necessary traction and power.

Specialized Hydraulic Motors

In addition to the common types of hydraulic motors mentioned above, there are also specialized hydraulic motors designed for specific applications. For example, there are internal shaft motors, which are designed to have a shaft that is internally supported, providing a more compact and efficient design.

One such example is the C03 - 43B0 3HP 2.2KW/2.25KW Hydraulic Internal Shaft Motor, which is suitable for applications where space is a constraint and high - performance is required.

Another specialized type is the Poclain - style hydraulic motor. Poclain hydraulic motors, such as the Poclain Hydraulic Motor MCR05 MCR10, are known for their high - torque capabilities and excellent performance in demanding applications.

Conclusion

As a hydraulic motor supplier, I understand the importance of choosing the right type of hydraulic motor for your specific application. Each type of hydraulic motor has its own unique characteristics, advantages, and limitations. Whether you need a simple and cost - effective gear motor for a low - pressure application or a high - performance piston motor for a heavy - duty operation, there is a hydraulic motor available to meet your needs.

If you are in the market for a hydraulic motor, I encourage you to contact us for more information and to discuss your specific requirements. Our team of experts can help you select the most suitable hydraulic motor for your application and provide you with a competitive quote. We are committed to providing high - quality products and excellent customer service. Let's start a conversation about your hydraulic motor needs today!

References

• "Hydraulic Pneumatics & Seals" magazine, various issues on hydraulic motor technology.
• "Fluid Power Handbook", a comprehensive guide on hydraulic and pneumatic systems.
