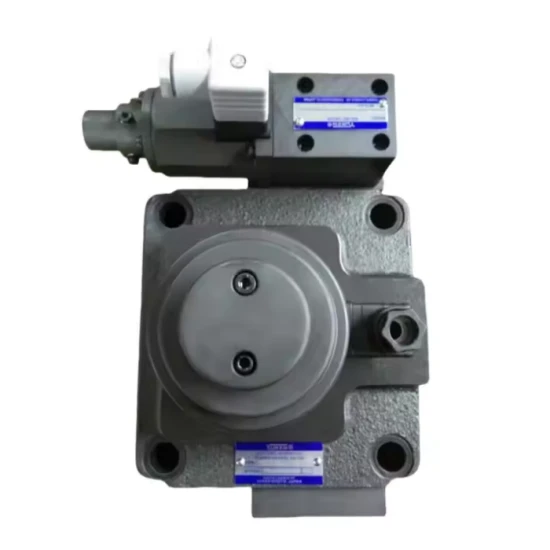

YUKEN Flow Overflow Valve EFBG-03-125-E-51
YUKEN's EFBG-03-125-E-51 is a hydraulic valve that belongs to the Electro Proportional Flow Control Valve.Application: Flow control for injection molding machines and die-casting machines. Accurate speed regulation in industrial hydraulic systems. In situations where automated traffic matching is required.
Model Analysis (EFBG-03-125-E-51)
1. EFBG: Series name, representing pilot operated proportional flow valve.
2.03: Diameter specification (such as 03 corresponding to DN6 or 1/4 inch interface).
3. 125: Rated flow rate (125 L/min).
4. E: Voltage specification (usually 24V DC).
5.51: Design code or options (which may correspond to springs, sealing materials, etc.).
Main characteristics
-Function: Control the flow rate through the proportion of electrical signals to achieve stepless adjustment of flow rate.
-Pressure range: The maximum working pressure is usually 21-31.5 MPa (specific reference sample).
-Applicable oil: Mineral based hydraulic oil (ISO VG32-68).
-Response time: about tens of milliseconds (depending on electrical signals).
-Electrical interface: with plug or socket (requires confirmation of protection level IP).
