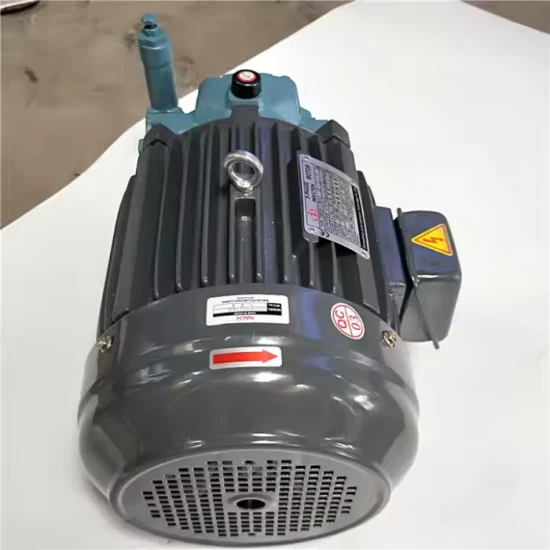

NACHI Hydraulic Motor UVN-1A-1A4-1.5-4-11
The combination product of UVN series variable vane pumps and motors produced by NACHI is often referred to as the "pump+motor combination" or "Unipump". It is not a standalone motor, but an integrated hydraulic power unit.
The main technical specifications and features of this product are as follows:
Product series: UVN series variable vane pump
Installation method: A - Foot mount installation
Pump capacity: 16.1 cm ³/rev
Pressure regulation range: 5.5-8.0 MPa
No load output:
24 L/min at 50Hz
29 L/min at 60Hz
Motor output power: 1.5 kW
Number of motor poles: 4 poles
Design code: 11 (representing energy-saving design)
Core features of the product
Efficient and energy-saving: By optimizing the design, the power consumption of the product has been reduced by about 20% compared to previous products, which helps to lower operating costs.
Compact and lightweight: The pump and motor are specially designed to be combined together, with a compact structure, light weight, and space saving installation, making it easy to design hydraulic stations.
Low noise and long lifespan: Special connectors are used to connect the pump and motor shafts, effectively avoiding noise caused by shaft vibration or axis deviation. At the same time, the connecting parts can continuously receive oil lubrication, reducing wear and extending service life.
