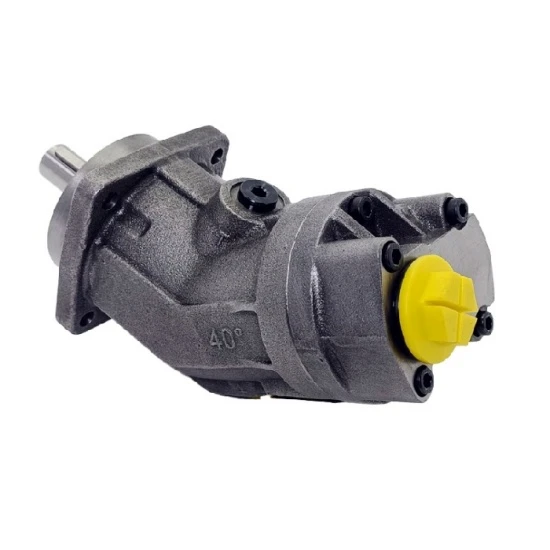

REXROTH A2FO10/61R-PPB06 Hydraulic Motor
FEATURES -Diagonal axis design: The structure is sturdy and suitable for high load and impact conditions. -High efficiency: The volumetric efficiency can reach over 95% (depending on the cleanliness of the oil and working conditions). -Low noise: Optimize plunger design to reduce operating noise. -Multiple control options: can be integrated with proportional valves and servo systems (corresponding control modules need to be selected).
Basic parameters
-Model: A2FO10/61R-PPB06
-Series: A2FO → Diagonal Axial Piston Motor (Fixed Displacement)
-Displacement: 10 cm ³/rev (displacement per revolution)
-Specification: 61 → Size Series (61 is a compact design)
-Pressure level:
-Maximum working pressure: 400 bar (continuous)
-Peak pressure: 450 bar (intermittent)
-Speed range:
-Maximum speed: approximately 4000 rpm (depending on oil viscosity and operating conditions)
-Rotation direction: bidirectional rotation (R represents reversible)
-Installation method: Flange installation (PPB06 is a specific flange and shaft extension configuration)
Typical application scenarios
-Walking machinery: small excavators, forklifts, and agricultural machinery's walking drive or rotating mechanism.
-Industrial equipment: winches, conveyor belt drives, mixing devices, and other applications that require compact power.
-Ship hydraulic system: servo, winch drive.
-Renewable energy: Small scale wind power variable pitch system (requiring control system coordination).
