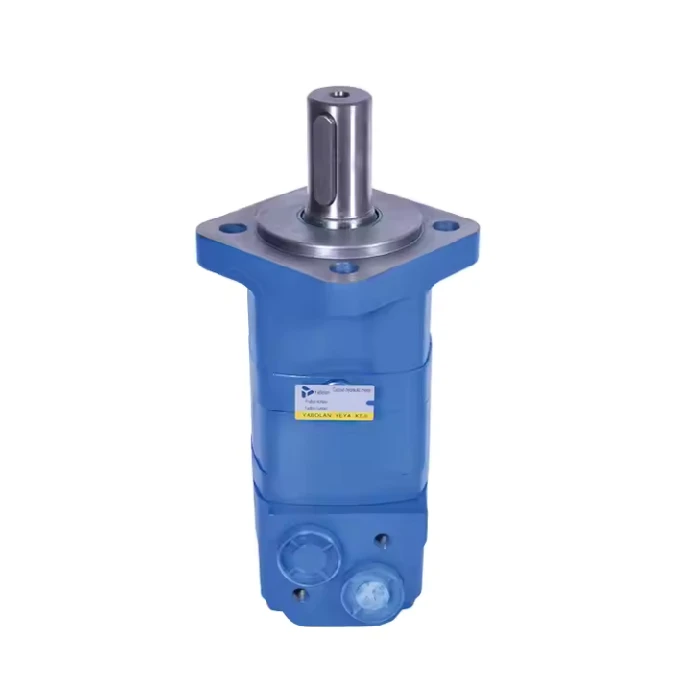

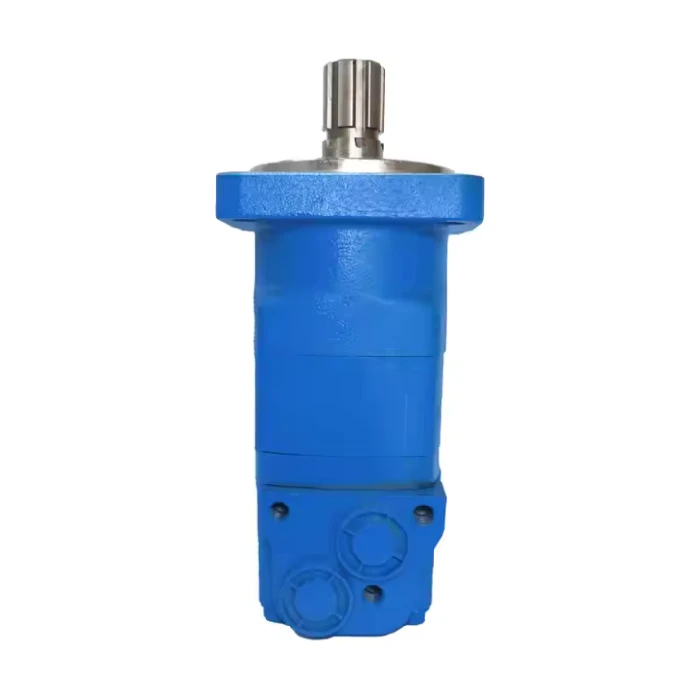

Eaton BM5-80 BM5-100 Winch Motor
BM5 motor is a type of end face distribution cycloidal hydraulic motor with pressure compensation function, suitable for engineering machinery, agricultural machinery, petroleum machinery, lifting and transportation, and machine tool manufacturing industries
explain:
The maximum working pressure refers to the maximum allowable pressure at the inlet
Rated working pressure refers to the working pressure difference
The motor should not be used at both maximum speed and maximum pressure simultaneously
The maximum allowable duration for working conditions is 6 seconds
Recommended oil: anti-wear hydraulic oil, viscosity 37-73cst, oil cleanliness ISO 18/13
The maximum working oil temperature is 80 ℃
Before the motor operates at full load, it must be run in for at least 1 hour at 30% of the rated pressure
Reliable dynamic sealing control method, the allowable Zui back pressure of the motor can reach 7mpa. To achieve good service life and comprehensive performance, it is recommended not to exceed 3.5mpa. If it exceeds the limit, an oil leakage pipe should be connected. When connecting the oil leakage pipe, it should be ensured that the motor is always filled with oil. The leaked oil pipeline should have a certain throttle to maintain a back pressure of 0.35 MPa or above. Connecting the leakage oil pipe can not only maintain a low back pressure, but also take away the wear and pollution generated inside the motor and produce a certain cooling effect.
Characteristics of BM5 motor:
Advanced design of fixed rotor parameters, low starting pressure, high efficiency, and smooth low-speed operation
High work pressure, high output torque
Advanced shaft seal design, high back pressure bearing capacity
Advanced and reliable linkage shaft design improves the service life of the motor
Advanced design of the distribution mechanism, featuring high distribution accuracy and automatic wear compensation
In hydraulic systems, it can be used in series or parallel, and when used in series, an oil leakage pipe should be connected
Adopting tapered roller bearing design, it has a large radial bearing capacity, allowing the motor to directly drive the working mechanism
